How to add Heat Stable Salts in an amine-based Acid Gas Cleaning Process

Download as pdf :
Products: Aspen HYSYS
Last Updated: 02-Jan-2018
Versions:
Article ID: 000066016
Primary Subject:
Problem Statement

How do I add and then view/modify Heat Stable Salts in an amine-based Acid Gas Cleaning process?

Solution

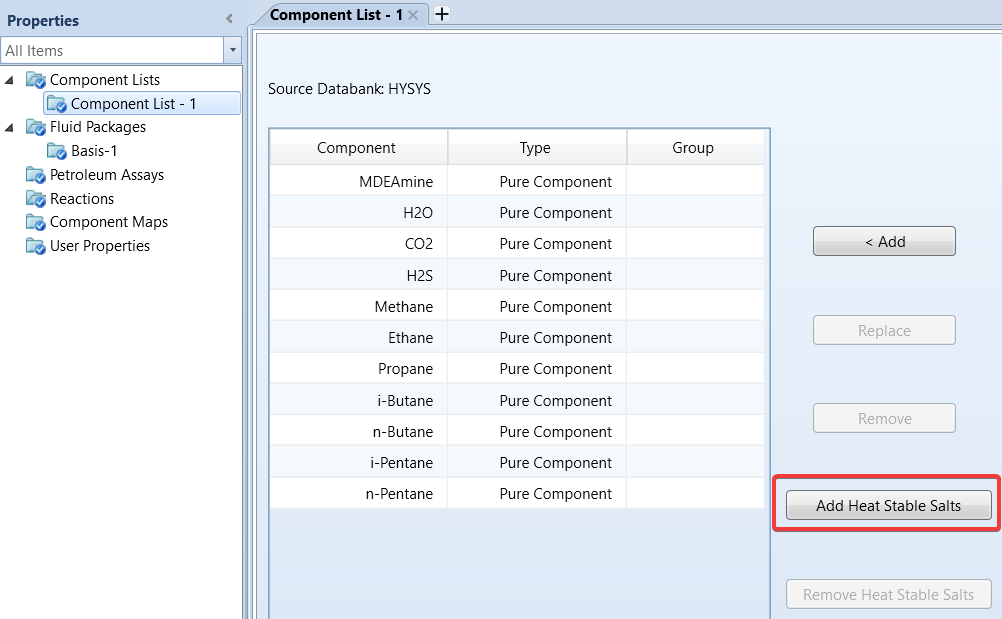

After selecting “Acid Gas – Chemical Solvents” as the Property Package, return to the Component List and click the “Add Heat Stable Salts” button


User-added image

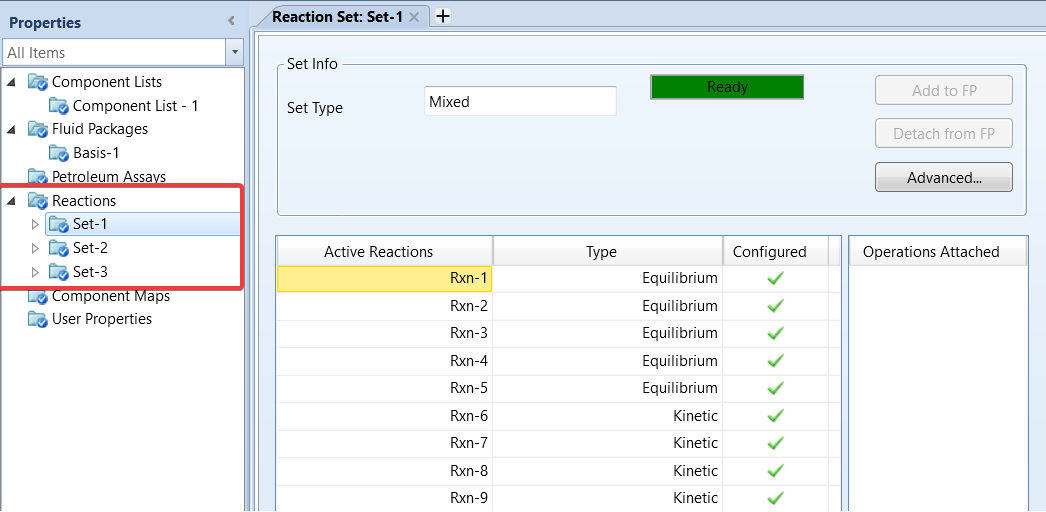

A series of reactions will be generated in the Reactions folder


User-added image

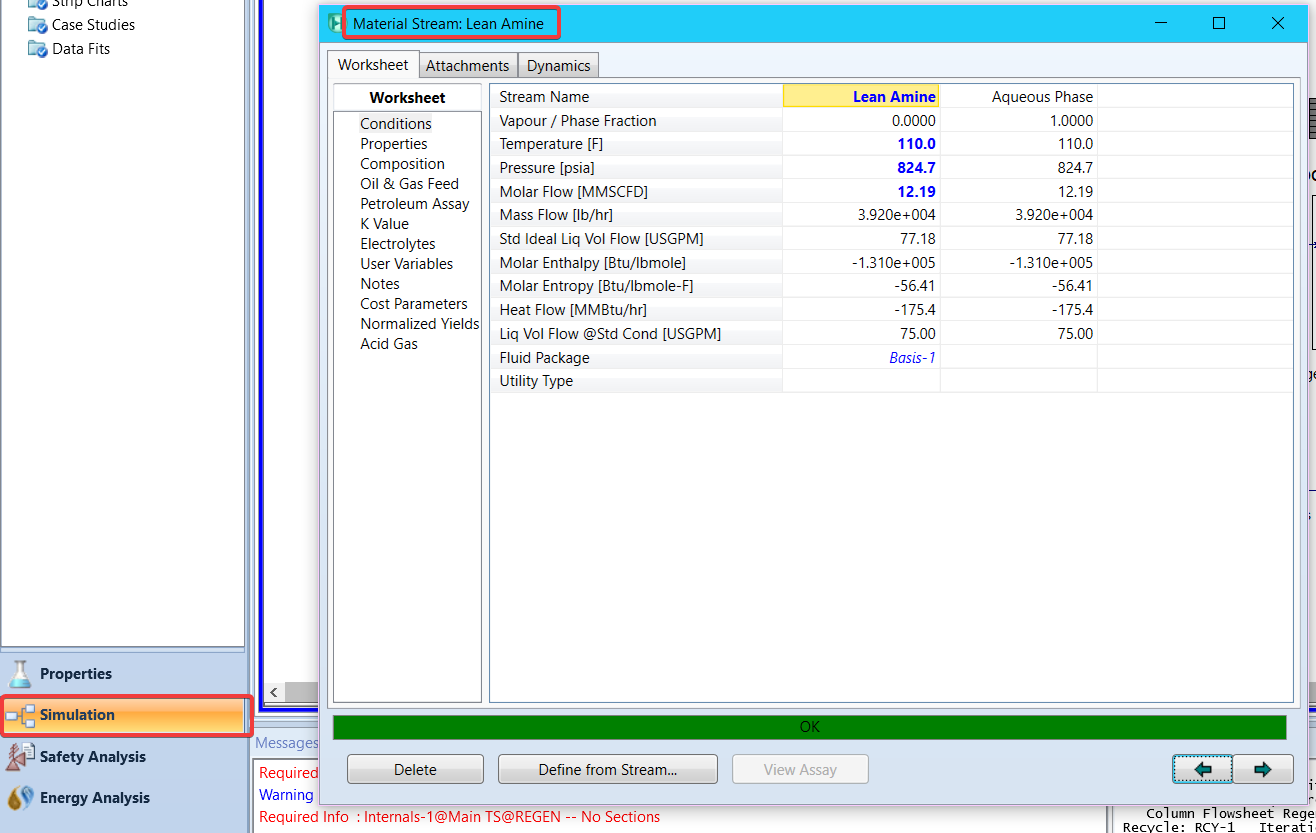

Return to the Simulation Environment and open the Lean Amine Stream


User-added image

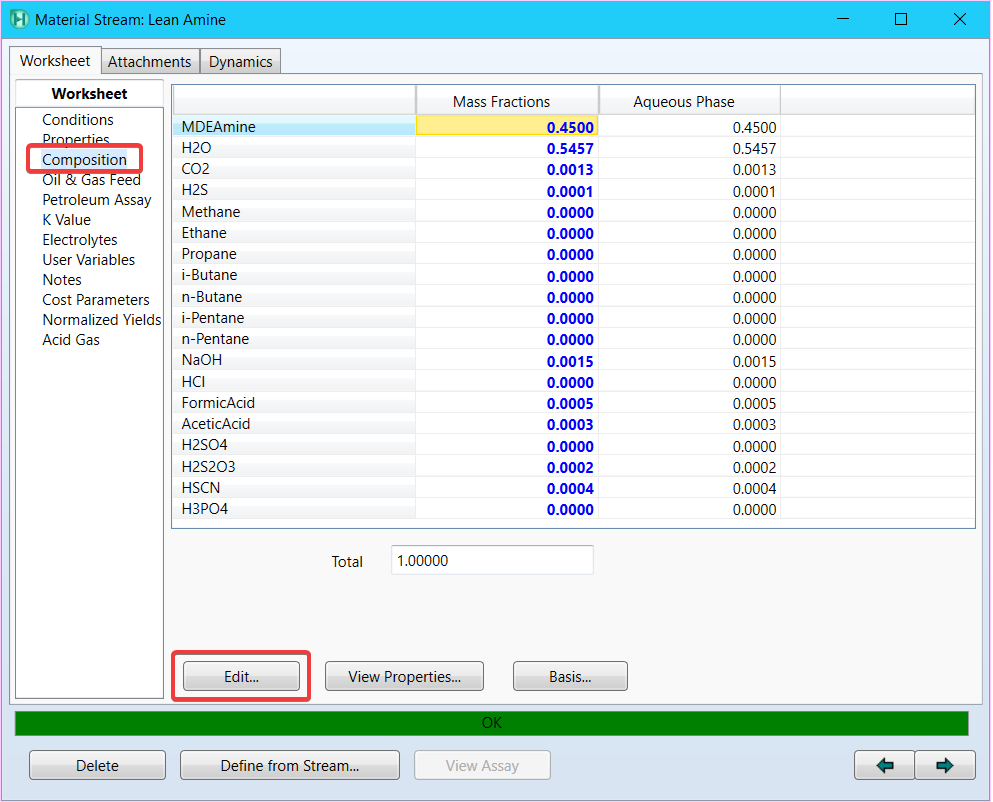

Go to the Composition form and then click the “Edit” button


User-added image

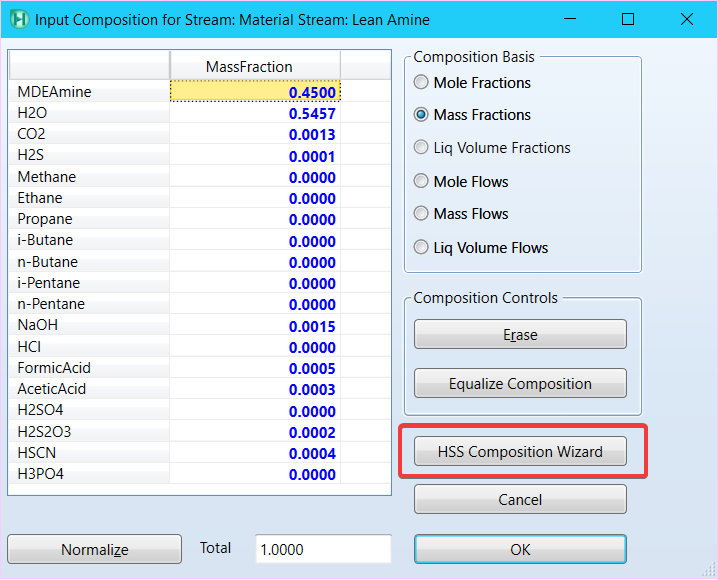

Click the “HSS Composition Wizard” button


User-added image

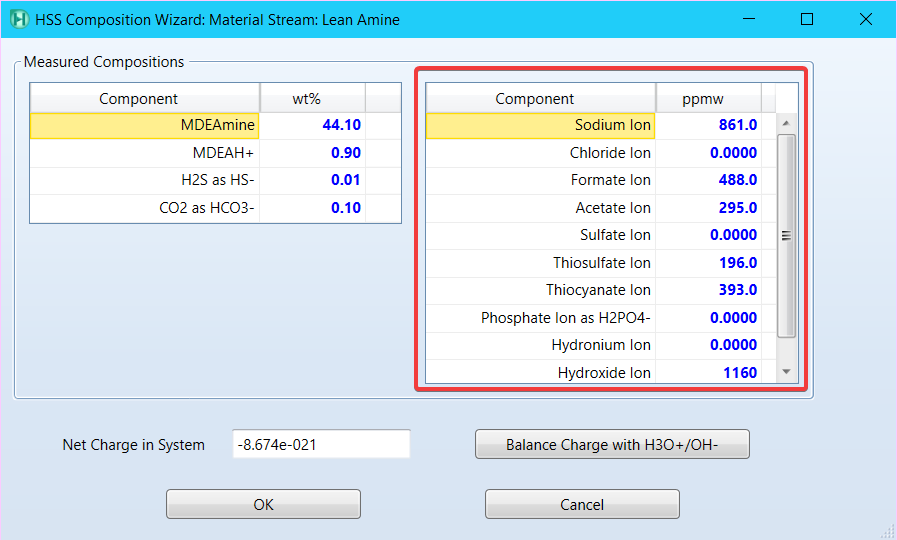

A form will appear displaying salt compositions.  These compositions can be modified and the effect on the outlet sweet gas H2S composition may be observed.


 User-added image


Key Words
Heat Stable Salts, HSS, acid gas cleaning, amine
