Problem Statement

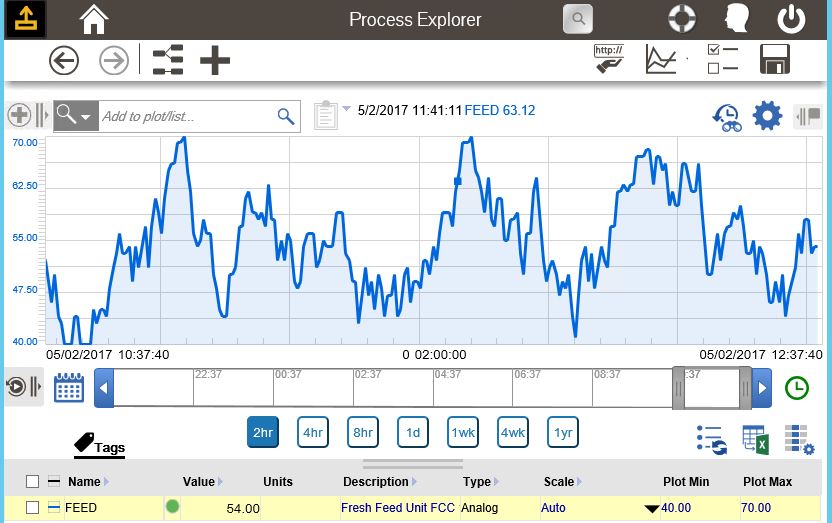

It is possible to publish standard Process Explorer plots to aspenONE Process Explorer.

This Knowledge Base article shows how it is done.

Solution

·        In Aspen Process Explorer click the Tools tab

·        Select Plot Utility icon in the Ribbon

·        Plot Utility dialog box opens

·        Define File or Folder path to where your Process Explorer plot files are saved

·        Define the Destination path – Public or Private

·        Click Export XML to publish the plot to aspenONE Process Explorer


The value that goes into the Destination field in the above dialog box will vary according to the following four scenarios:


1. Aspen Process Explorer and aspenONE Process Explorer (A1PE) web server version 8.8 and older on the same system: C:\inetpub\wwwroot\AspenTech\ProcessExplorer\Files\Public
2. Aspen Process Explorer and aspenONE Process Explorer web server version 8.8 and older on different systems: the path in the Destination field should be a UNC path similar to \\CastleBlack\c$\inetpub\wwwroot\AspenTech\ProcessExplorer\Files\Public where CastleBlack is the name of the A1PE server
3. Aspen Process Explorer and aspenONE Process Explorer (A1PE) web server version 9.0 and newer on the same system: C:\ProgramData\AspenTech\A1PE\Files\Public
4. Aspen Process Explorer and aspenONE Process Explorer web server version 9.0 and newer on different systems: the path in the Destination field should be a UNC path similar to \\CastleBlack\c$\ProgramData\AspenTech\A1PE\Files\Public where CastleBlack is the name of the A1PE server
