Problem Statement
This solution frames how to import a Non-linear Apollo Controller into DMC3 Builder.
Solution
Please follow the next steps:
1.- Open DMC3 builder and create an APC Project.

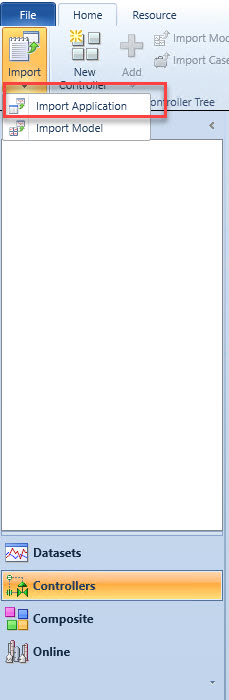

2.- Go to Controller and then on the top ribbon select import application.
3.- a pop-up window should appear to select the .run application from Apollo
IMPORT NOTE:

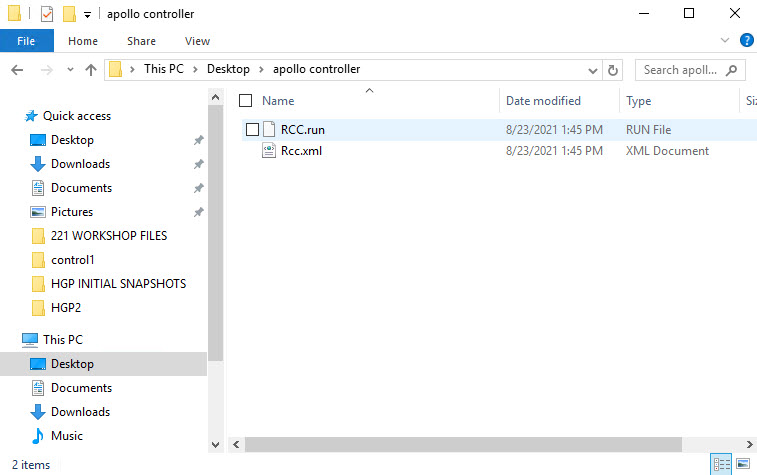

make sure that the folder from where you will import the .run file contained the .xml file too.
4.- At this point, the Model should be successfully imported and you should be able to access the controller.
5.- Non-Linear Controllers also can be exported and imported from the APC project. These files will be saved as xxxx.apcapplication which can be imported into DMC3 builder, in the same way, the XXXX.dmc3application does. The main condition for .apcapplication to be imported is that the type of project is an APC project.
