How to import/export unit operations and flowsheet objects in Aspen HYSYS?
Solution
In HYSYS we can copy/paste flowsheet objects with n same file using below option:
-
Cut/Copy/Paste flowsheet object(s).
Only user specified data is transferred.

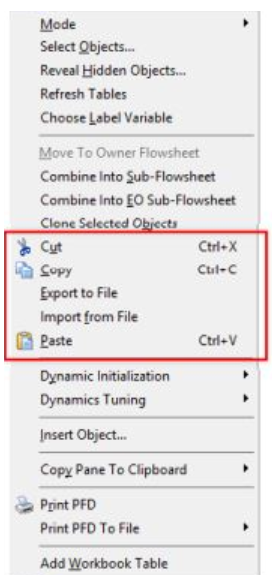

Accessed by right-clicking a highlighted object/objects.
Most useful when doing a one-time transfer of data within a HYSYS simulation.
Also, in HYSYS we can import/export flowsheet objects to another file:
-
Import/Export portions of a flowsheet.
To export, right-click and choose Export to File.
Saved externally as a *.hfl file.
Can be imported into any HYSYS case.
Most useful when repeatedly transferring data within a HYSYS simulation, or when transferring data to another simulation.
