Problem Statement
What are the difference between Model Summary Grid and Flowsheet Summary in Aspen HYSYS?

Solution

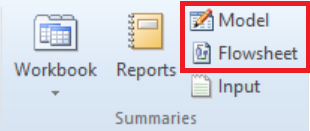

We have two options for result reporting options:


The Model Summary Grid displays input and results for material streams and unit operations in one view.

- Includes an embedded, real-time link to Excel via Aspen Simulation Workbook.
- In the main Model Summary Grid, the data appears split over separate tabs for each model type. --- The Model Summary Grid within individual blocks displays a summary of the variables for that block.

The Flowsheet Summary contains important material/energy balance details.

- Also shows results from included Process Utilities and CO2 emissions tracking.
- In the Model Summary Grid, the data appears split over separate tabs based on unit operation type.
- The Flowsheet Summary view contains the following tabs:
1. Mass Energy Balance
2. Utility Summary
3. Process CO2 Emissions
4. Stream Diagnostics
5. Pressure Balances
6. Convergence Monitor
