How to work (e.g. create contour) within an AOI

Download as pdf :
Products: Aspen SeisEarth
Last Updated: 25-May-2026
Versions:
Article ID: 000105095
Primary Subject:
  1. You want to create a contour within an AOI.

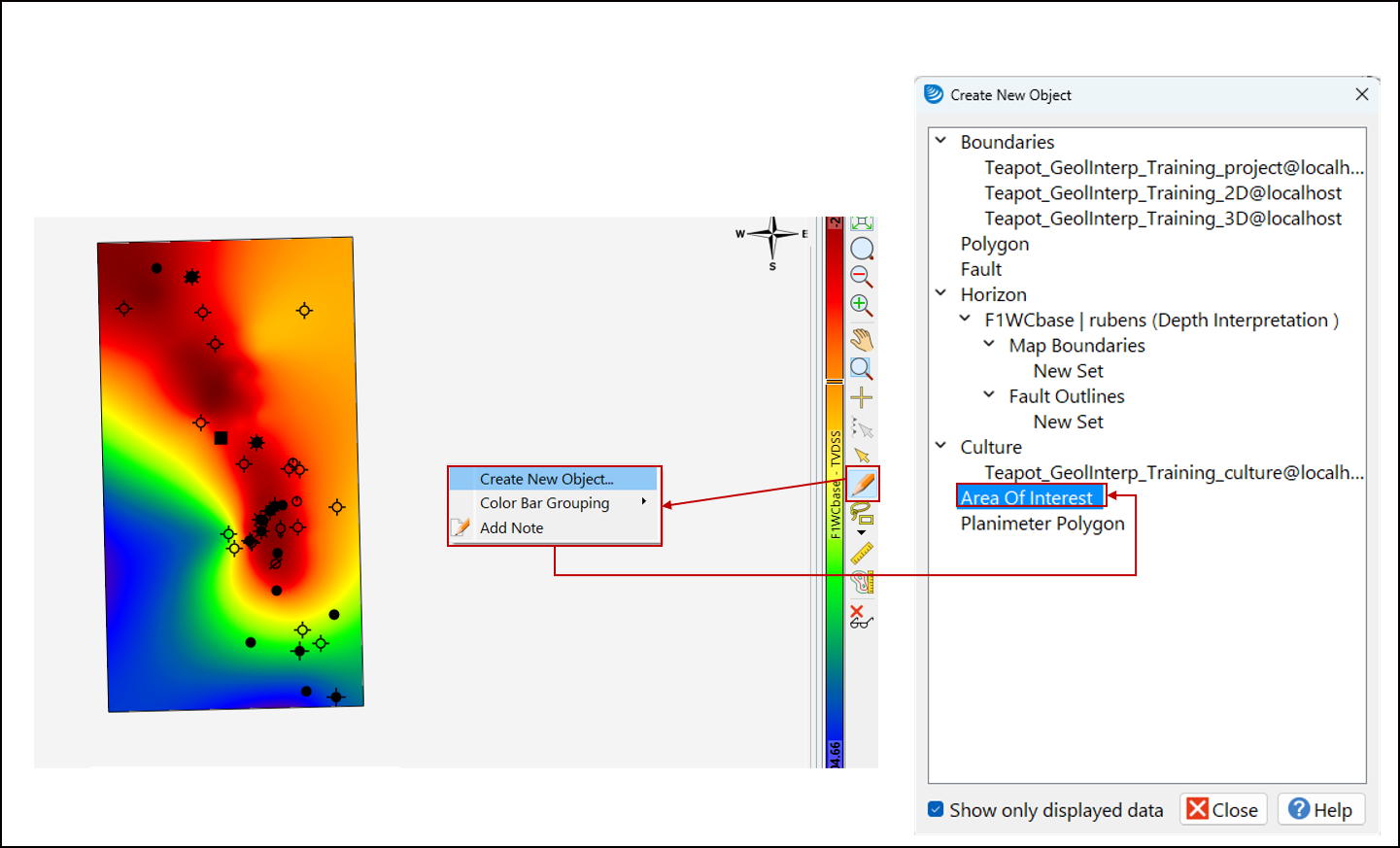

  2. In Basemap > click on Draw (pencil icon) > MB3 (Right Mouse Button) > Create New object

3.  Choose Area of Interest Category

4.  Draw the polygon on the grid

5   MB3 > Close

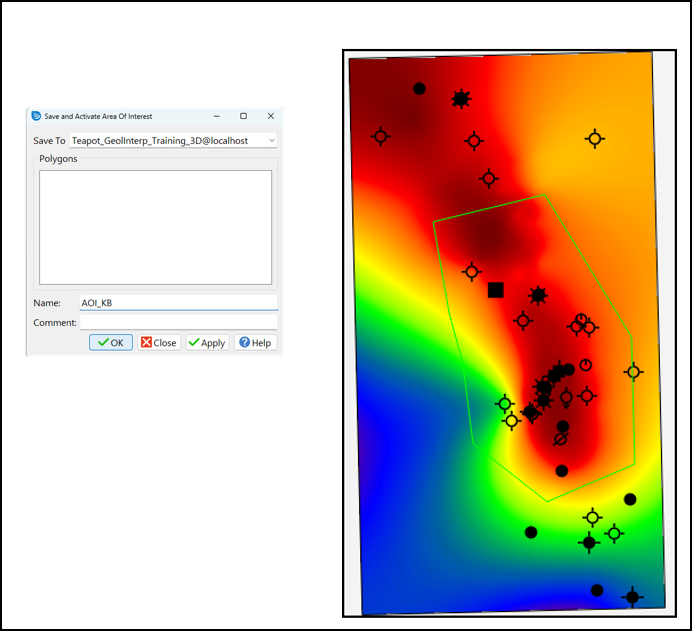

6.  Give a Name and click OK

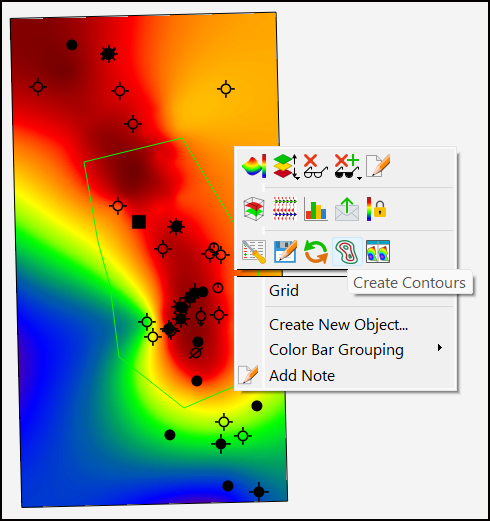

7. MB3 (Right Mouse Button) > Create Contours

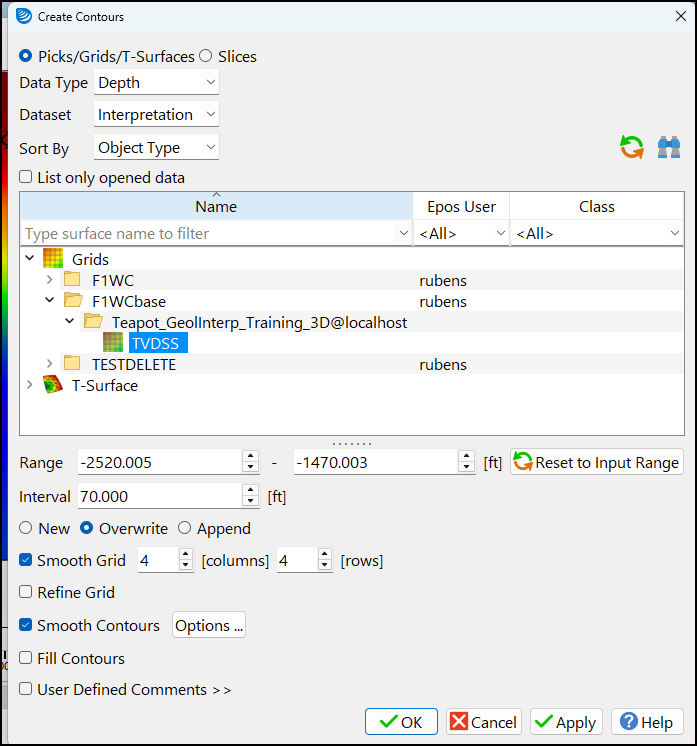

8. In the Create Contour window > choose the grid > the range and click OK

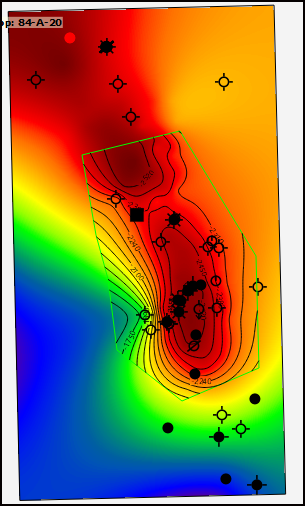

9. The contour is created within the AOI polygon

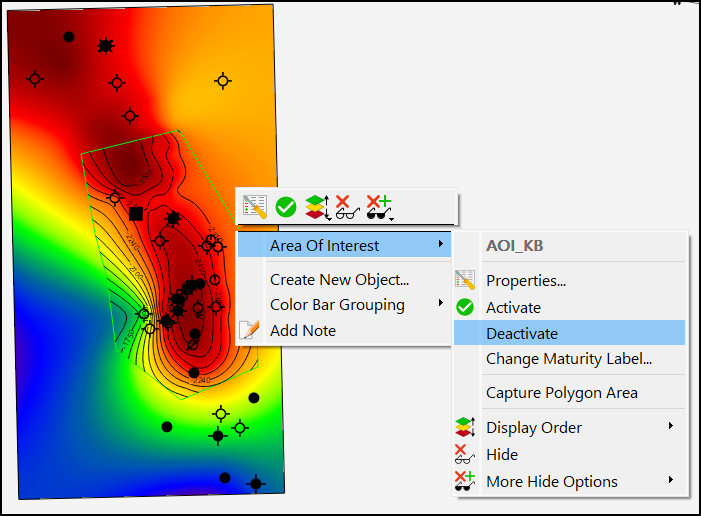

10. If you want to create contour for the whole grid area, you can either delete the AOI in Interpretation Manager or MB3 (Right Mouse Button) on the AOI polygon > Area of Interest > Deactivate

11.  Repeat Step #8

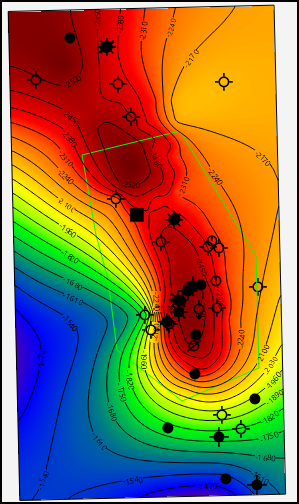

12. The contour is generated for the whole grid area
