What are the utility options available that Aspen Plus can calculate?

Download as pdf :
Products: Aspen Plus
Last Updated: 27-Jun-2022
Versions:
Article ID: 000099917
Primary Subject:
Problem Statement

What are the utility options available that Aspen Plus can calculate?

Solution
  • A Utility is an option in Aspen Plus that can be used to calculate:
    • Energy usage
    • Utility usage (for example, pounds of High Pressure steam/hr)
    • Energy/utility cost
  • You can assign a utility to any block where Duty or Power is either specified or calculated (except MHeatX)
  • To calculate the required utility flow for a given process:

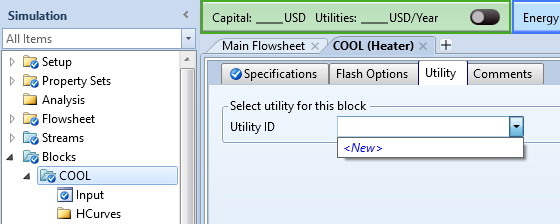

    • From the Block specification form, select the Utility sheet
    • Choose the <New> from the Utility ID dropdown list
pp

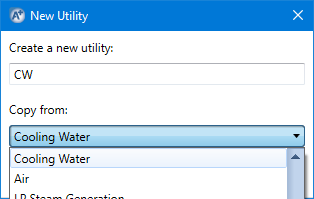

      • Enter a name for the Utility (you can select a predefined utility)
pp2

    • Click the Next button to go to the Utilities folder

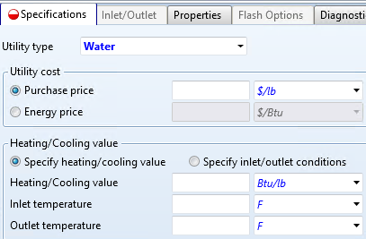

    • Choose the Utility type from the eight selections provided
pp3
    • For utility cost calculations, enter either the Purchase price or Energy price
    • Set the calculation option as Specify heating/cooling value (default), or Specify inlet/outlet conditions (set values on Inlet/Outlet sheet) and supply related parameters
    • Choose to calculate CO2 emissions if appropriate on the Carbon Tracking sheet (optional)
